120mm Directional Drilling Motor API Oilfield Mud Motors

Product Categories
Langfang Blue Water International Trading Co.,Ltd
Contact Now

120mm Directional Drilling Motor API Oilfield Mud Motors

  • 1
  • 2

MOQ : Negotiable

Supply Ability : 30000PCs per Year

Delivery Time : 5-15work days

Packaging Details : According to customer needs

Model : 7LZ-120-3.8-1150

Drilling Fluid : Water/Salty Water/ Oil Base Mud

Well Temperature : Below 150℃

Application : Coiled Tubing Drilling

Bend : Single Bend

Standard : API Spec 7-1

Origin : China

HS Code : 84122910

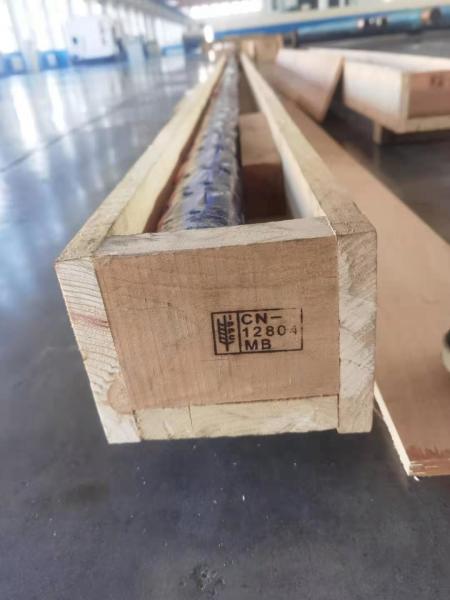

Package : Wood Cartons Free of Fumigation or Naked

OEM : Available

Place of Origin : Hebei,China

Certification : ISO9001

Price : Negotiable

Payment Terms : T/T

Contact Now

4-3/4" (120mm) Even Wall Down Hole Motor for Oil and Gas Well Directional Drilling



Local aging of elastomer occurs frequently in conventional downhole motors because the elastomer thickness of conventional downhole motor is different. The elastomer are worn not evenly. That leads to a power section failure soon. This problem is solved greatly in Even Wall Thickness downhole motors. The elastomer of even wall thickness downhole motor is the same. It is worn evenly in drilling operation so it extends the working life greatly. Even wall thickness downhole motors also provide 50% more toque than conventional downhole motors and longer working life in directional well drilling.

Our ET Series downhole motor are able to be custom made as per the customers detailed requirements if the required size is not available in below tables.

Availability of our small size downhole motor:



Downhole Motor Specification OD Bit Size Connection Lobe Stage Flow Rate RPM Working Pressure Drop Output Toque Max Pressure Drop Max Toque Operating WOB Max WOB Output Power
mm In mm In Top Bottom Lpm Gpm MPa Psi N.m lb-ft MPa Psi N.m lb-ft kN lb kN lb KW HP
5LZ-120-4.2-890 120 4-3/4 149~200 5-7/8~7-7/8 3-1/2REG 3-1/2REG 5:6 4.2 380-950 100-251 72-181 9.76 1416 5288 3900 14.64 2124 7932 5851 50 11240 80 17600 100 134
7LZ-120-3.8-1150 120 4-3/4 149~200 5-7/8~7-7/8 3-1/2REG 3-1/2REG 7:8 3.8 570-132 151-349 77-178 8.83 1281 5371 3962 13.25 1921 8057 5943 50 11240 80 17600 100 134



120mm Directional Drilling Motor API Oilfield Mud Motors120mm Directional Drilling Motor API Oilfield Mud Motors

120mm Directional Drilling Motor API Oilfield Mud Motors
